Standing Firm – How to Install a Metal Sign Post Correctly

Installing a metal sign post may seem straightforward: dig a hole, insert the post, and pour concrete. However, doing it correctly requires an understanding of soil mechanics, wind loads, and even safety regulations. A poorly installed post will not only lean—it can also become a dangerous projectile or fail to protect drivers in the event of a crash.

Depth: The Golden Rule

The most critical factor in installation is depth. A post that is too shallow will bend or topple under strong winds or accidental impacts.
  • Standard Soil Conditions: For most environments, sign posts should be buried 2 to 3 feet (24–36 inches) deep.
  • Concrete Foundations: If using a concrete foundation, a depth of 1 to 2 feet is typically sufficient, as the concrete provides additional mass and stability.
  • Rule of Thumb: “The larger the sign, the deeper it goes.” Large roadside signs require deeper embedment to withstand lateral wind forces.

Installation Techniques

There are two primary methods for setting a metal sign post:

1. Driving (Pounding)

For smaller U-channel posts with a tapered end, you can drive the post directly into the ground using a sledgehammer or post pounder—a hollow, weighted tube. This method is fast and ideal for breakaway applications, as it eliminates the need for a rigid concrete base. However, it is essential to check that the post remains straight using a level throughout the process.

2. Digging and Concrete Setting

For larger signs or applications where maximum stability is required, digging a hole and setting the post in concrete is the standard practice. While this method offers superior rigidity, it renders the post non-breakaway unless a slip base is installed.

Mounting the Sign

The way you attach the sign to the post is just as important as the installation itself.
  • For U-channel posts: Always mount the sign on the open side of the “U,” rather than the closed base. The open side provides a flat surface for the sign to rest against, preventing it from bending under pressure. Use the pre-drilled holes with bolts, washers, and nuts to secure the sign firmly.

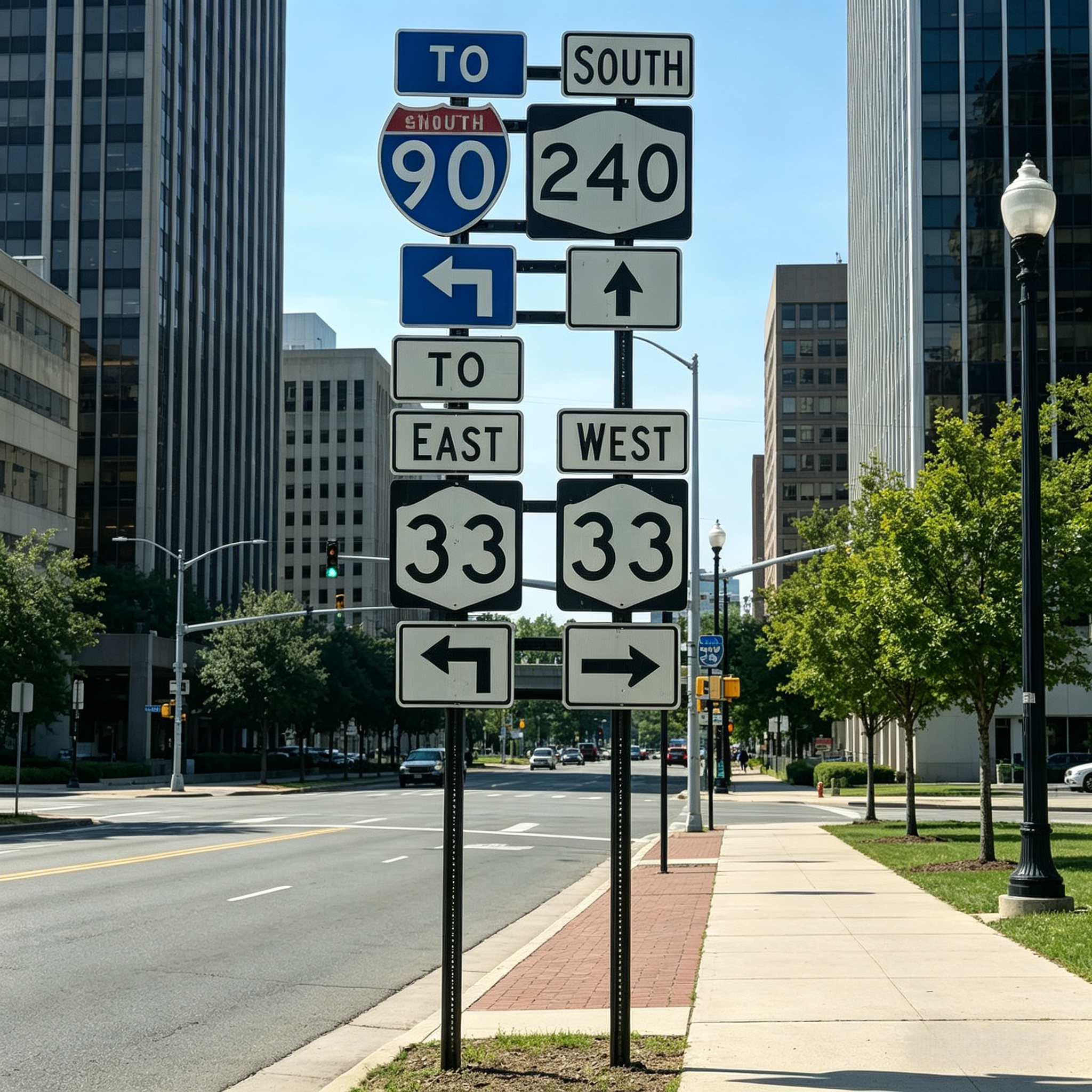

  • For round posts: Use specialized sign-mounting brackets. These brackets wrap around the pipe, providing a flat surface for attaching the sign. For signs wider than 48 inches, two posts are recommended to prevent swaying.
Finally, always contact your local utility company to mark underground lines before digging. A sturdy sign post begins with a safely dug hole.
